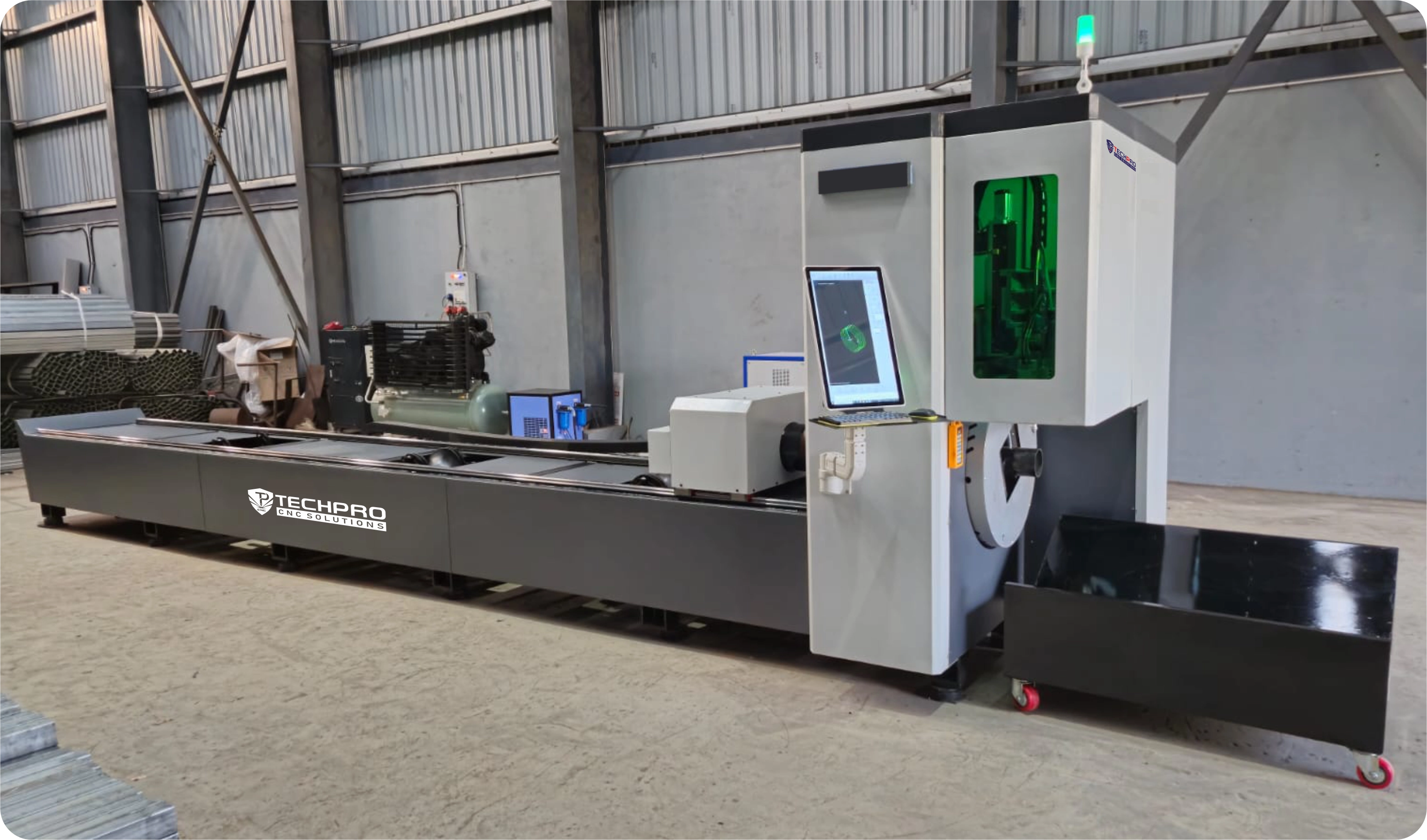

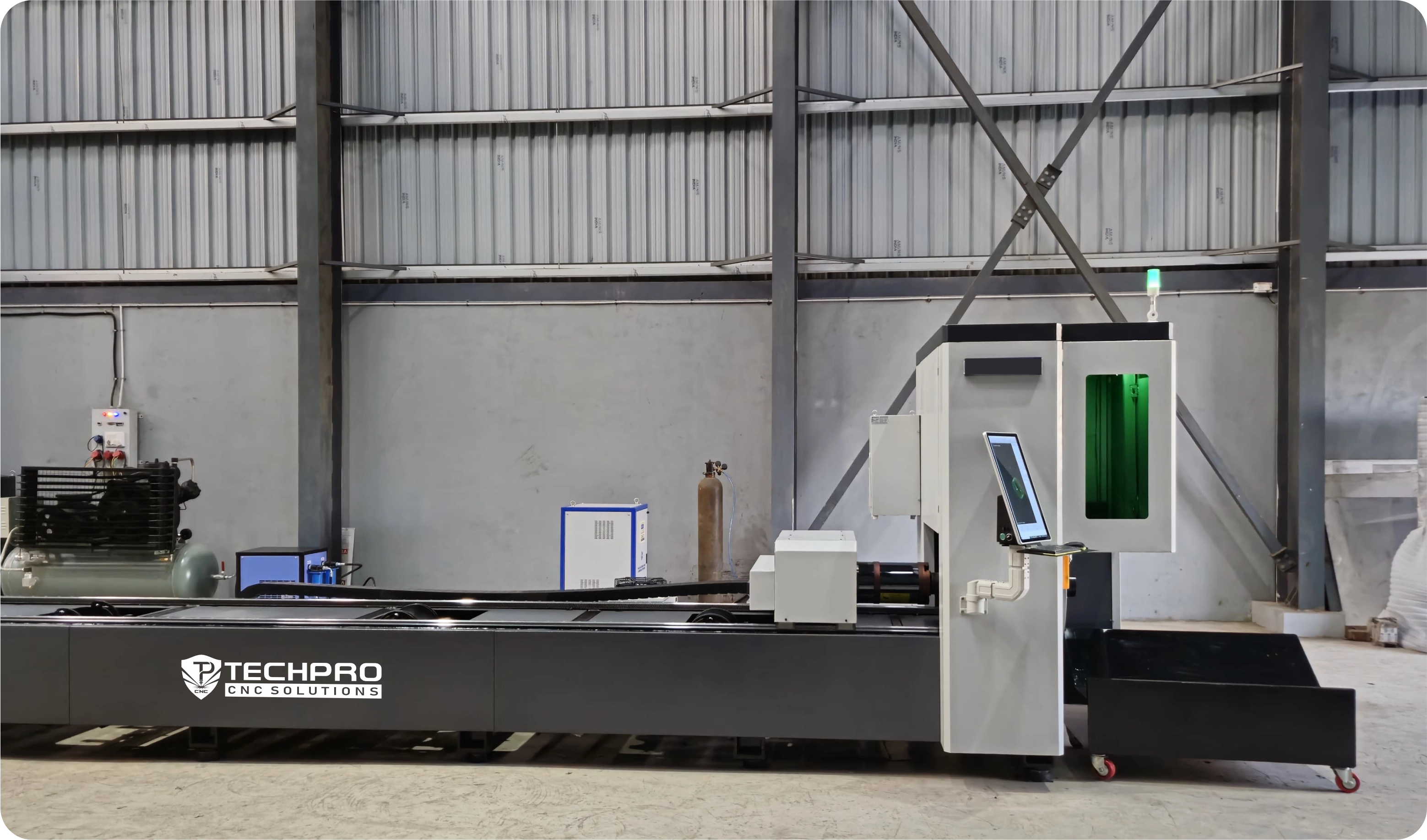

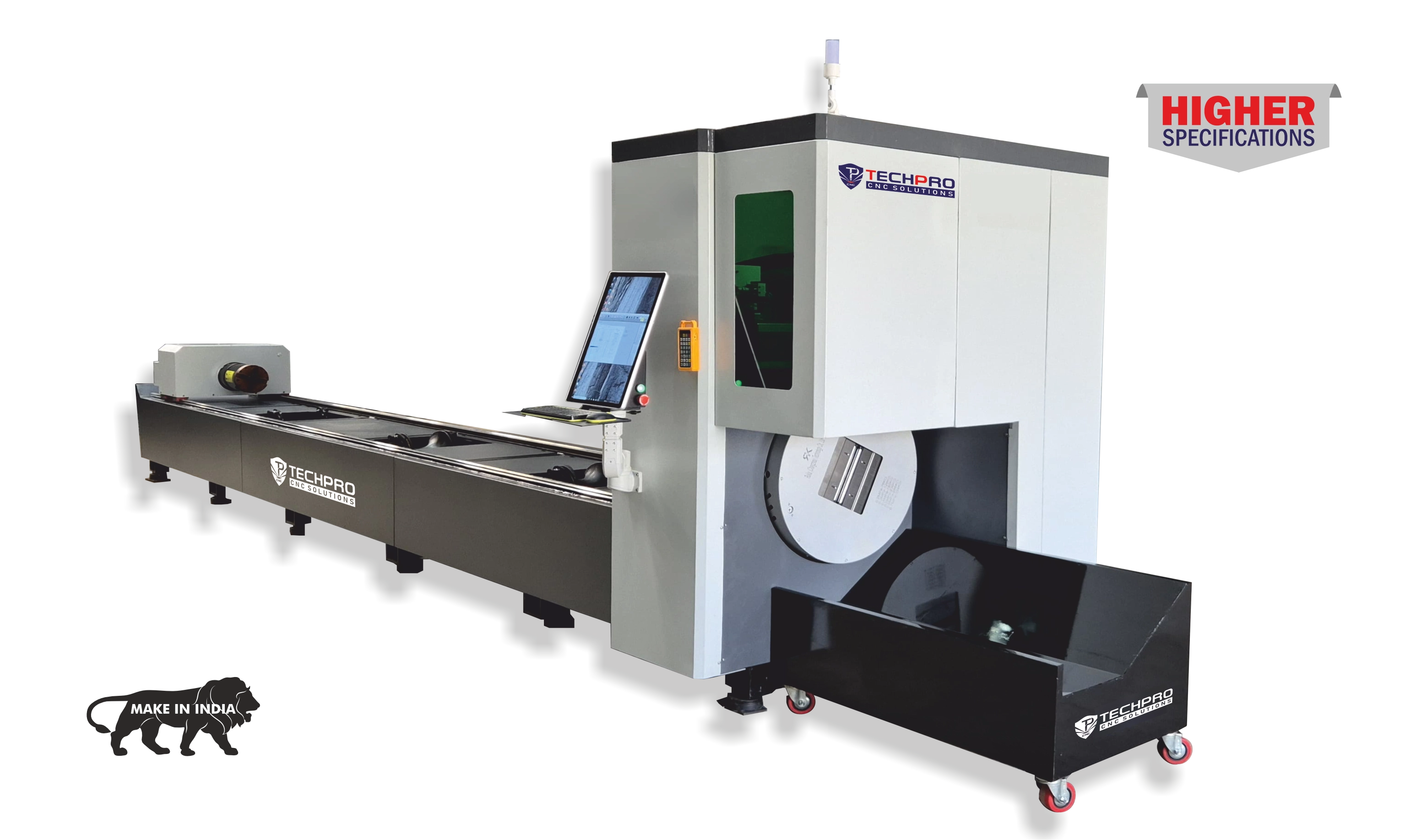

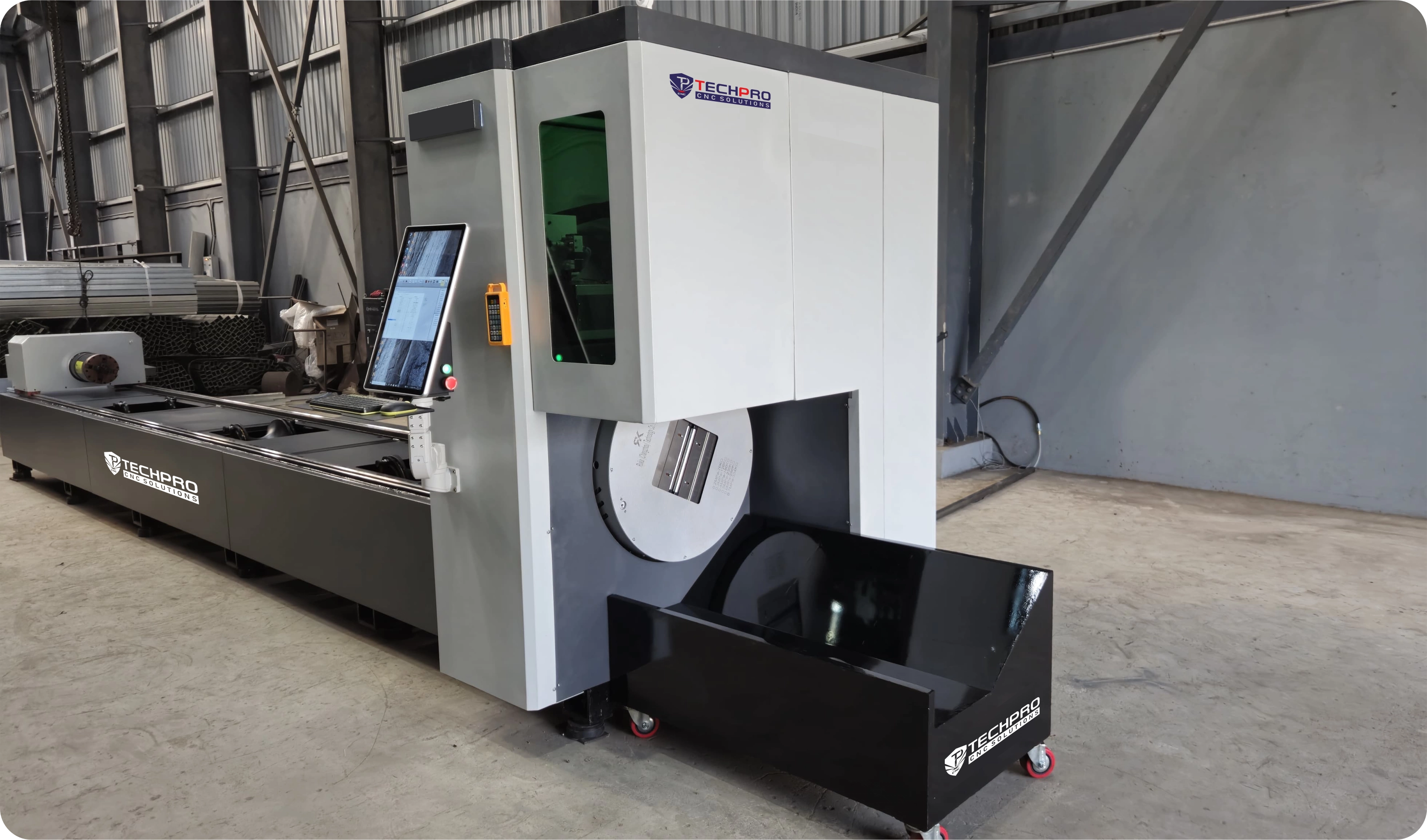

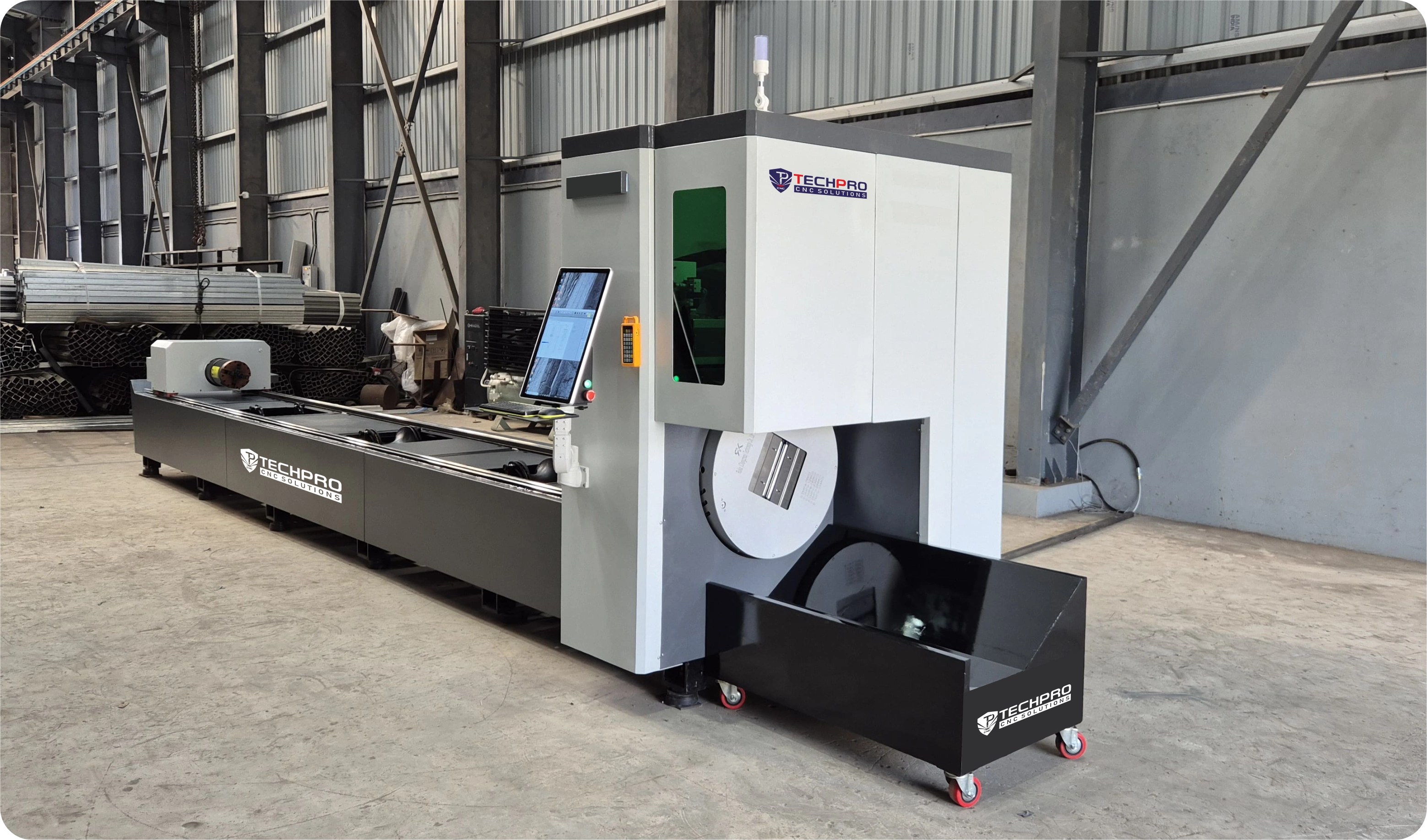

CNC Fiber Laser Pipe Cutting Machine
(Pipe / Tube Cutting Machine)
Product Discription
The CNC Fiber Laser Pipe/Tube Cutting Machine from TECHPRO CNC SOLUTIONS is an advanced cutting system designed for high-precision and high-speed processing of round, square, rectangular, and other shaped tubes. Built with state-of-the-art fiber laser technology, this machine ensures superior cutting quality, increased efficiency, and reduced material wastage. It is ideal for industries requiring complex and precise tube-cutting applications.
The CNC Fiber Laser Pipe/Tube Cutting Machine from TECHPRO CNC SOLUTIONS ensures high efficiency, precision, and cost-effectiveness, making it the perfect choice for industries requiring advanced metal tube processing solutions.
Product Details
Specifications
- Power Sources : MAX / RAYCUS / IPG
- Cutting Accuracy: ± 0.03mm/Meter
- Minimum Pipe Diameter: 20mm
- Maximum Pipe Diameter: 220mm
- Maximum Pipe Weight: 250 kg
- Max. Rapid Speed: 1,20,000 mm/Min
- Auto-Focus Cutting Head: Raytools / Bochu
Machine Sizes
- Working: 1600 x 3100 mm (TP-1530 LR)
- Working: 1600 x 6400 mm (TP-1565 LR)
- Working: 2100 x 4000 mm (TP-2040 LR)
- Working: 2100 x 6400 mm (TP-2065 LR)
- Working: 2500 x 6400 mm (TP-2565 LR)
- Pipe Cutting Length: 6000mm (6 Meters)
- As per requirements
Power Sources
- MAX / RAYCUS : 1500 W (1.5 KW)
- MAX / RAYCUS : 2000 W (2 KW)
- MAX / RAYCUS : 3000 W (3 KW)
- MAX / RAYCUS : 6000 W (6 KW)
- MAX / RAYCUS : 12000 W (12 KW)
- MAX / RAYCUS : 20000W (20 KW)
Key Features:
- ✅ High-Speed Fiber Laser Source: Provides precise, clean, and burr-free cuts with minimal heat-affected zones.
- ✅ Automatic Chuck Clamping System: Securely holds pipes and tubes, ensuring high accuracy and stability during cutting.
- ✅ High-Performance Servo Motors & Drives: Ensures fast and precise motion control for intricate cutting patterns.
- ✅ Heavy-Duty Structure: Heavy-Weighted construction ensures stability and vibration-free operation.
- ✅ Intelligent CNC Control System: User-friendly interface with advanced automation features for seamless operation.
- ✅ Low Maintenance & Operating Cost: Fiber lasers consume less power and require minimal maintenance.
- ✅ Versatile Cutting Capability: Supports cutting of round, square, rectangular, oval, and custom-profile tubes.
- ✅ Optional Features: Remote controller and any Other Requirements
Related Products
High-precision CNC Fiber Laser Machine for plate and pipe cutting, ensuring superior speed, accuracy, and efficiency.

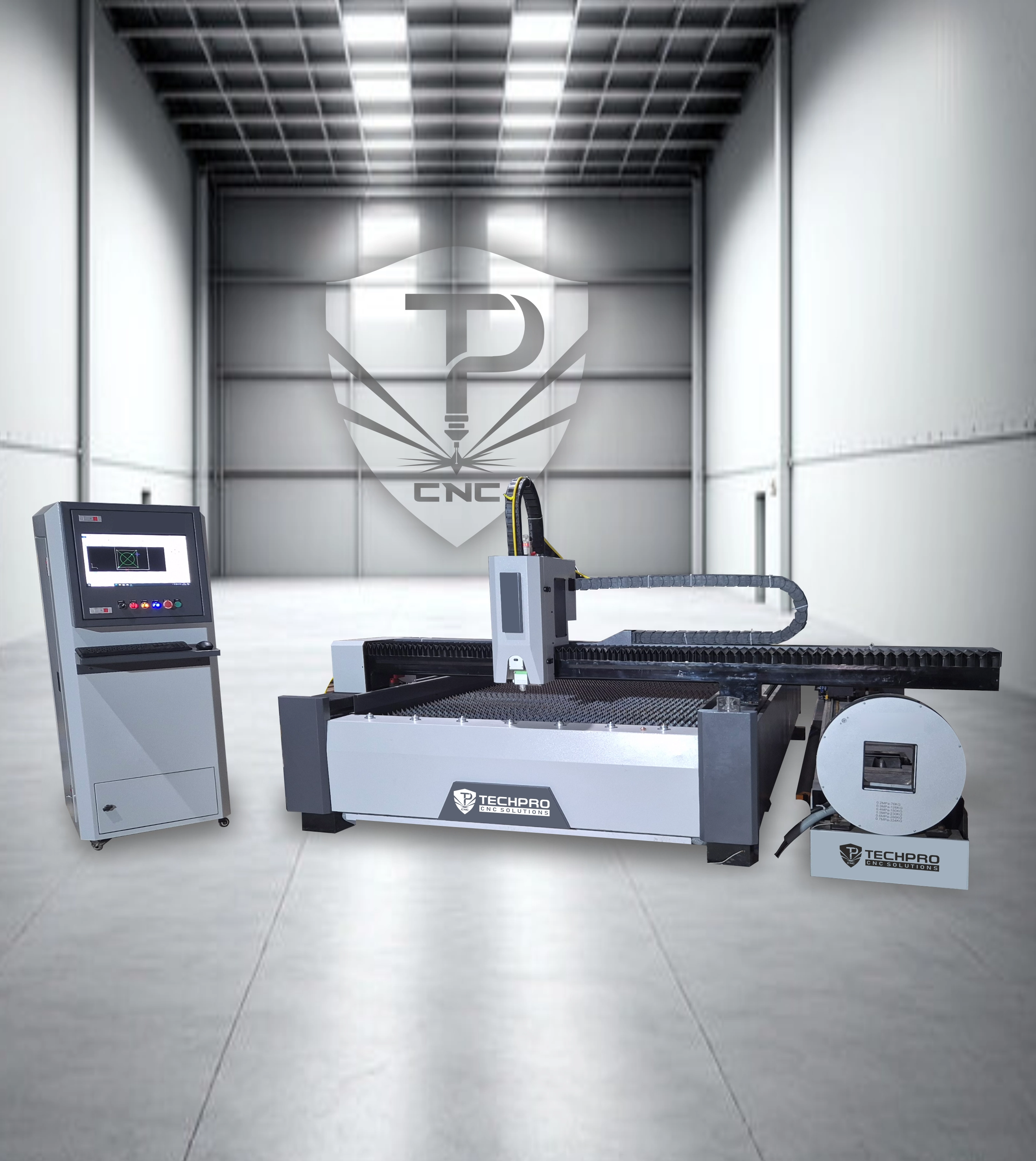

See MoreCNC Fiber Laser Plate with Pipe Cutting Machine
