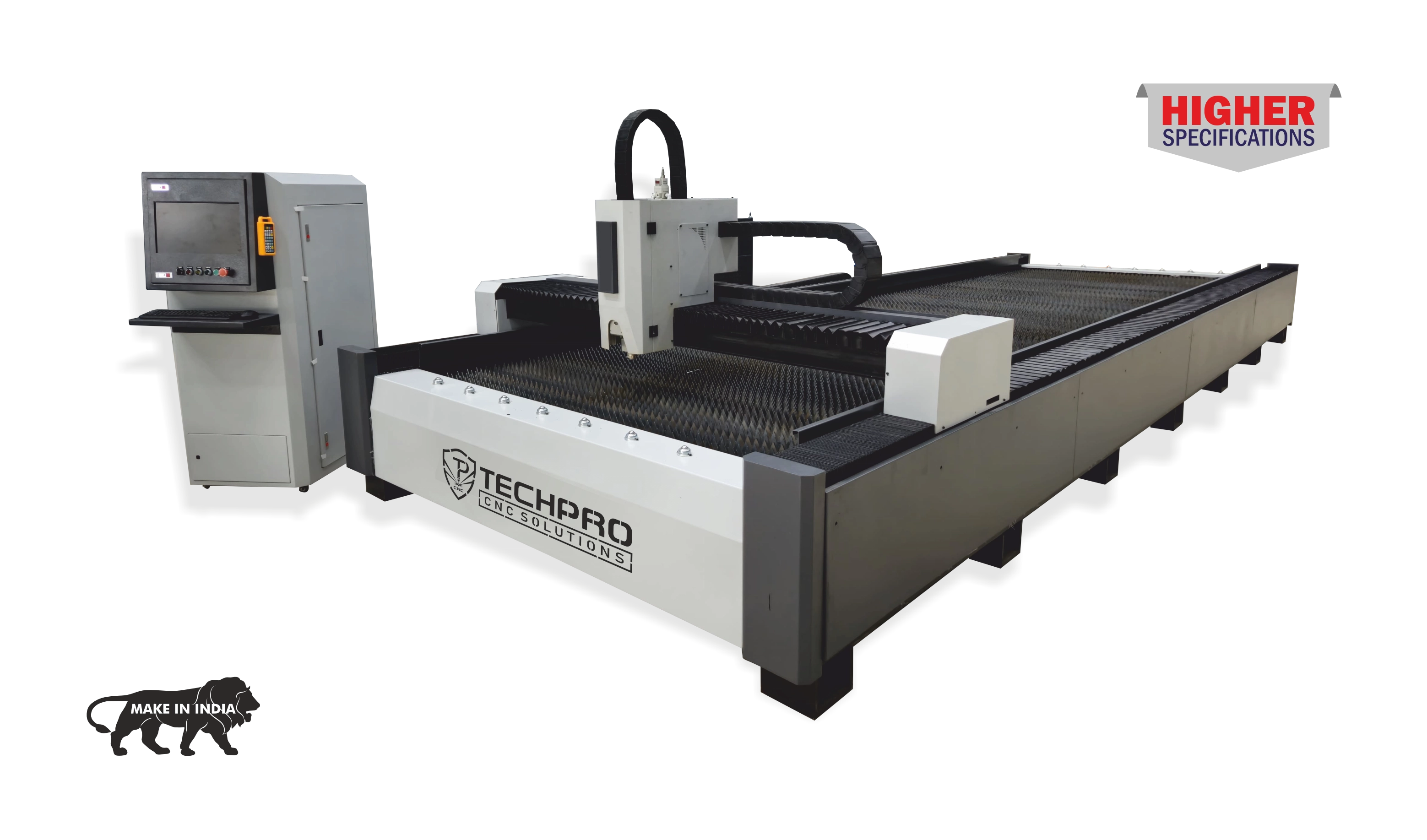

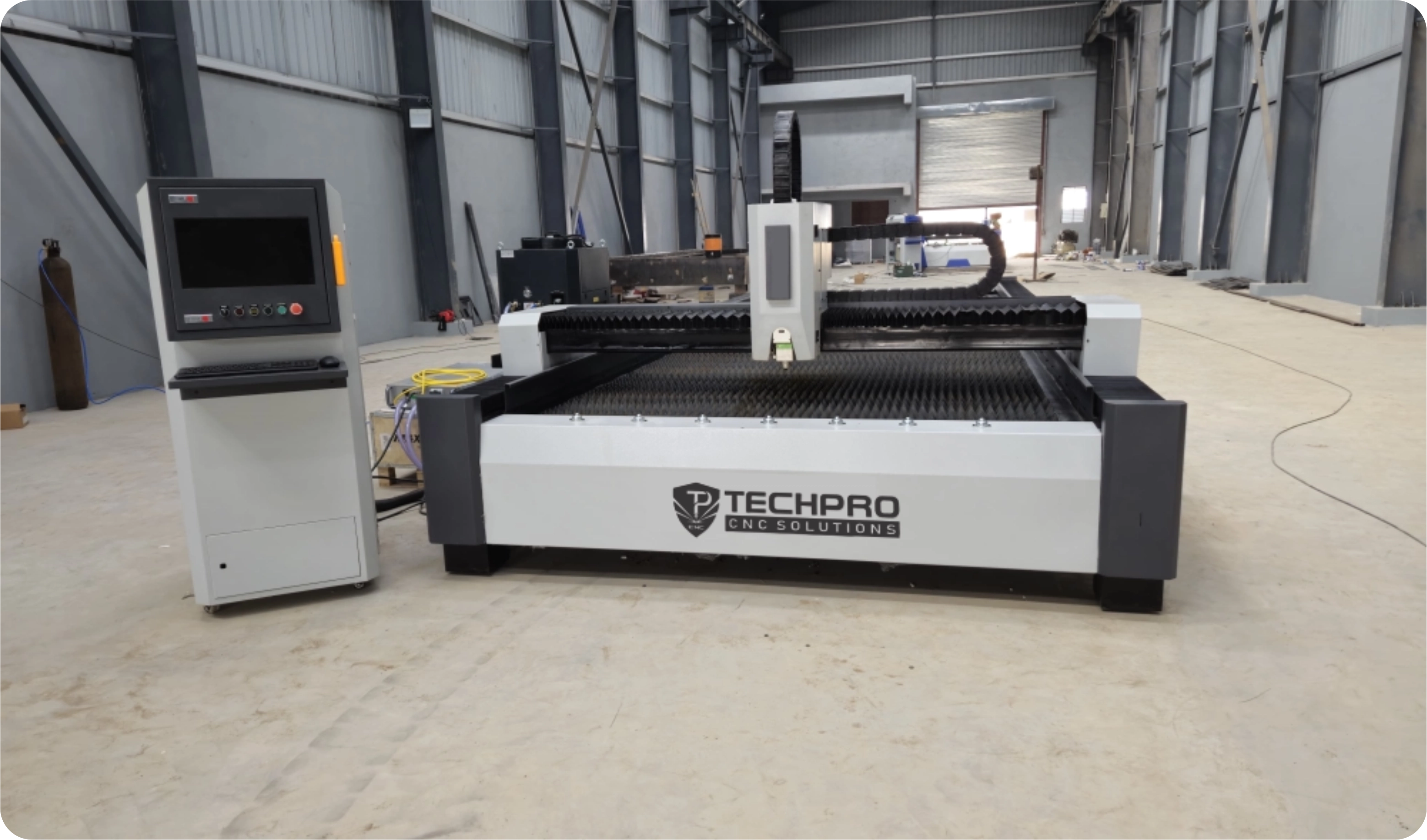

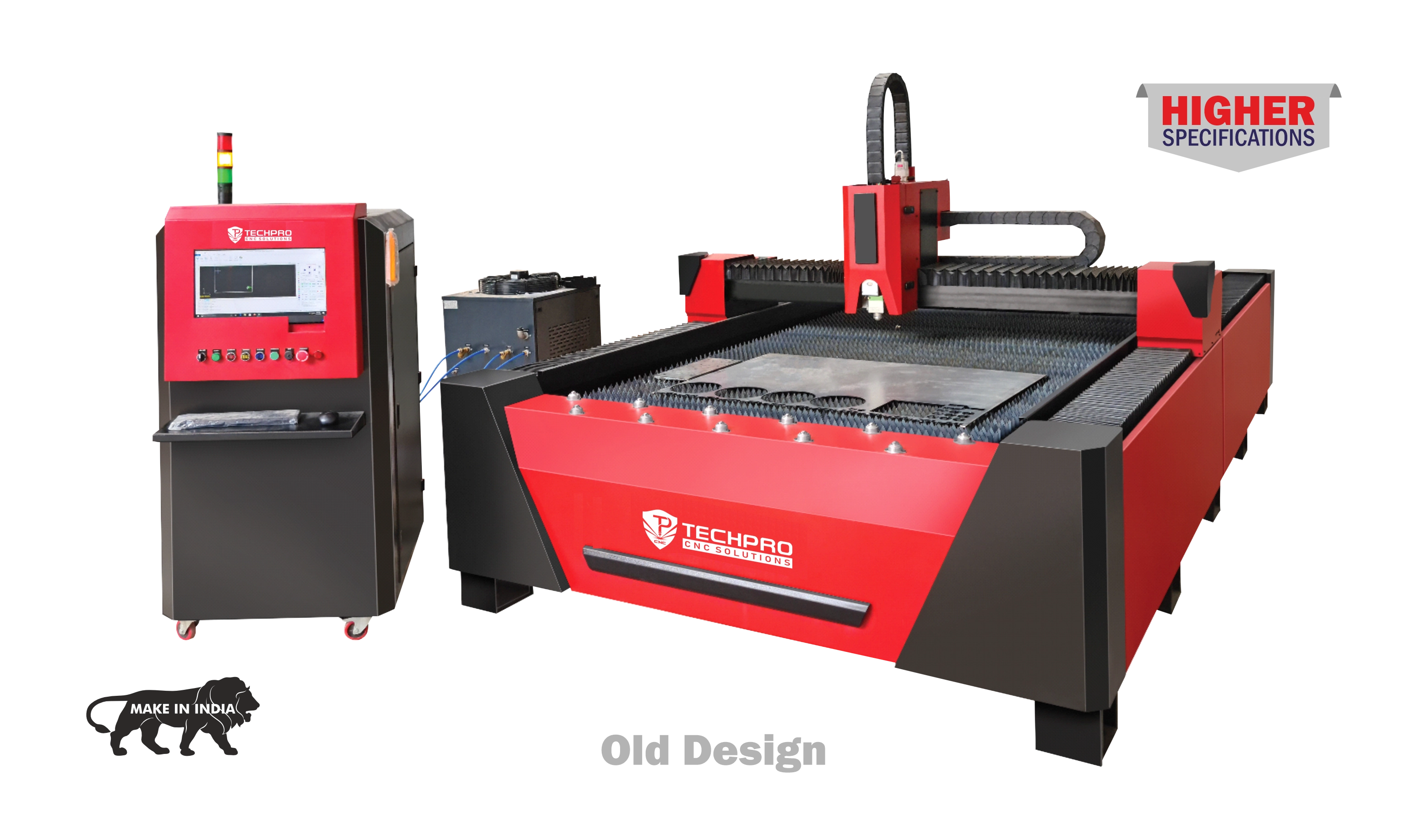

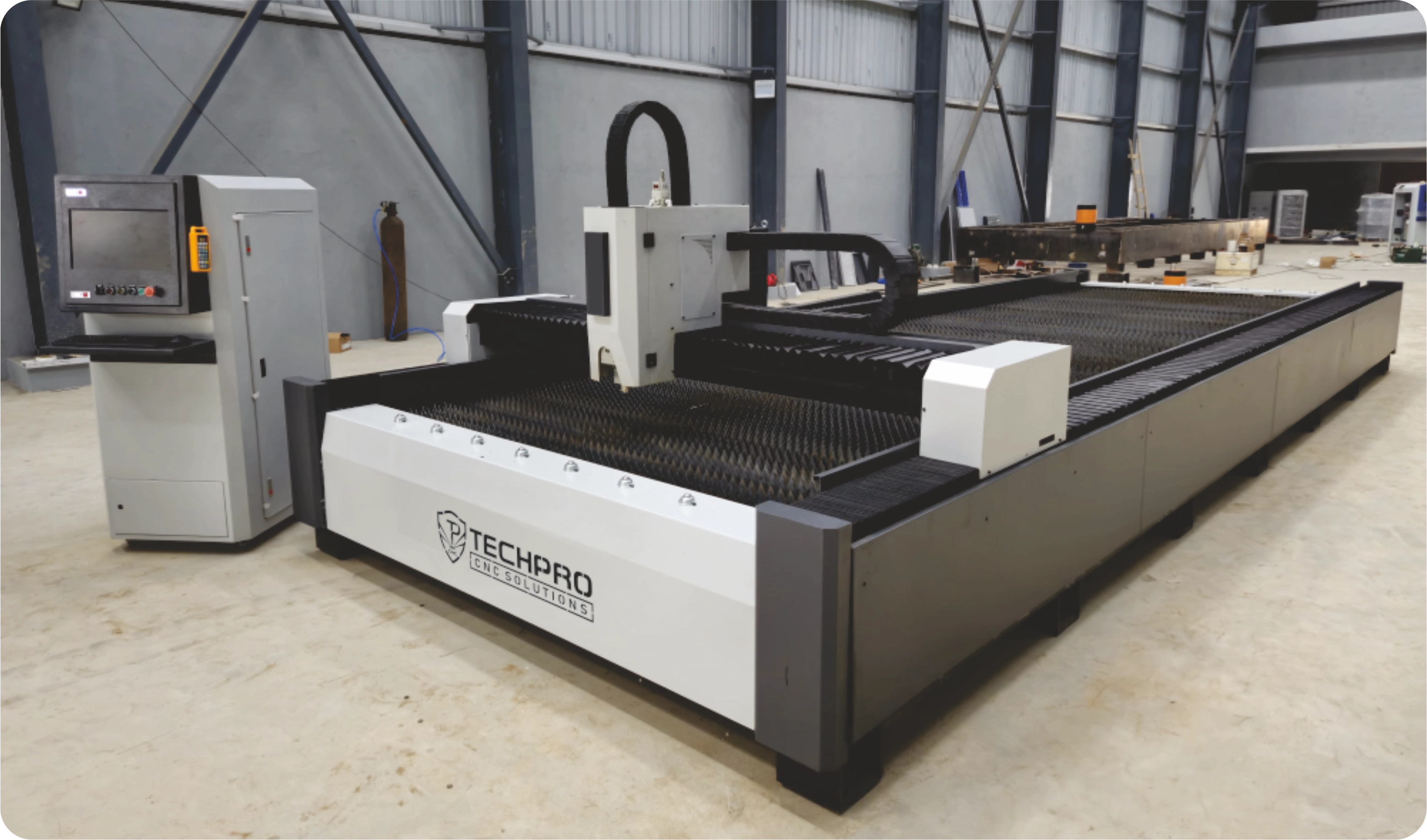

CNC Fiber Laser Cutting Machine
(Sheet Metal - Table Type)
Product Discription
Our CNC Fiber Laser Cutting Machine is designed to deliver superior precision, high-speed performance, and energy efficiency for cutting a wide range of metals. Engineered with advanced fiber laser technology, it ensures smooth, accurate, and burr-free cuts with minimal heat-affected zones.
Product Details
Specifications
- Power Sources : MAX / RAYCUS / IPG
- Positioning Accuracy: ± 0.03mm
- Repeated Positioning Accuracy: ± 0.03mm
- Maximum Acceleration: 1.2 G
- Maximum Rapid Speed: 1,20,000 mm/Min
- Power Demand: 380V, 50Hz/60Hz
- Auto-Focus Cutting Head: Raytools / Bochu
Machine Sizes
- Working: 1600 x 3100 mm (TP-1530 L)
- Working: 1600 x 6400 mm (TP-1565 L)
- Working: 2100 x 4000 mm (TP-2040 L)
- Working: 2100 x 6400 mm (TP-2065 L)
- Working: 2500 x 6400 mm (TP-2565 L)
- Available Dual Pallet (Exchanger)
- As per requirements
Power Sources
- MAX / RAYCUS : 1500 W (1.5 KW)
- MAX / RAYCUS : 2000 W (2 KW)
- MAX / RAYCUS : 3000 W (3 KW)
- MAX / RAYCUS : 6000 W (6 KW)
- MAX / RAYCUS : 12000 W (12 KW)
- MAX / RAYCUS : 20000W (20 KW)
Key Features:
- ✅ High-Speed Precision Cutting: Advanced CNC controller and servo motors for fast and accurate cutting.
- ✅ Powerful Fiber Laser Source: Available in multiple power configurations (1kW to 20kW) for various thicknesses.
- ✅ Heavy-Duty Structure: Heavy-Weighted Table-type construction ensures stability and vibration-free operation.
- ✅ User-Friendly CNC Interface: Smart, intuitive software with nesting features for optimized material usage.
- ✅ Low Maintenance & Operating Cost: Fiber lasers consume less power and require minimal maintenance.
- ✅ Versatile Cutting Capability: Cuts stainless steel, mild steel, aluminum, brass, and other metals with ease.
- ✅ Separate Control Cabinet: Protects electronic components from dust and heat, ensuring longer lifespan and reliable operation.
- ✅ Optional Features: Pallet changer, tube cutting attachment, Remote controller and any Other Requirements
