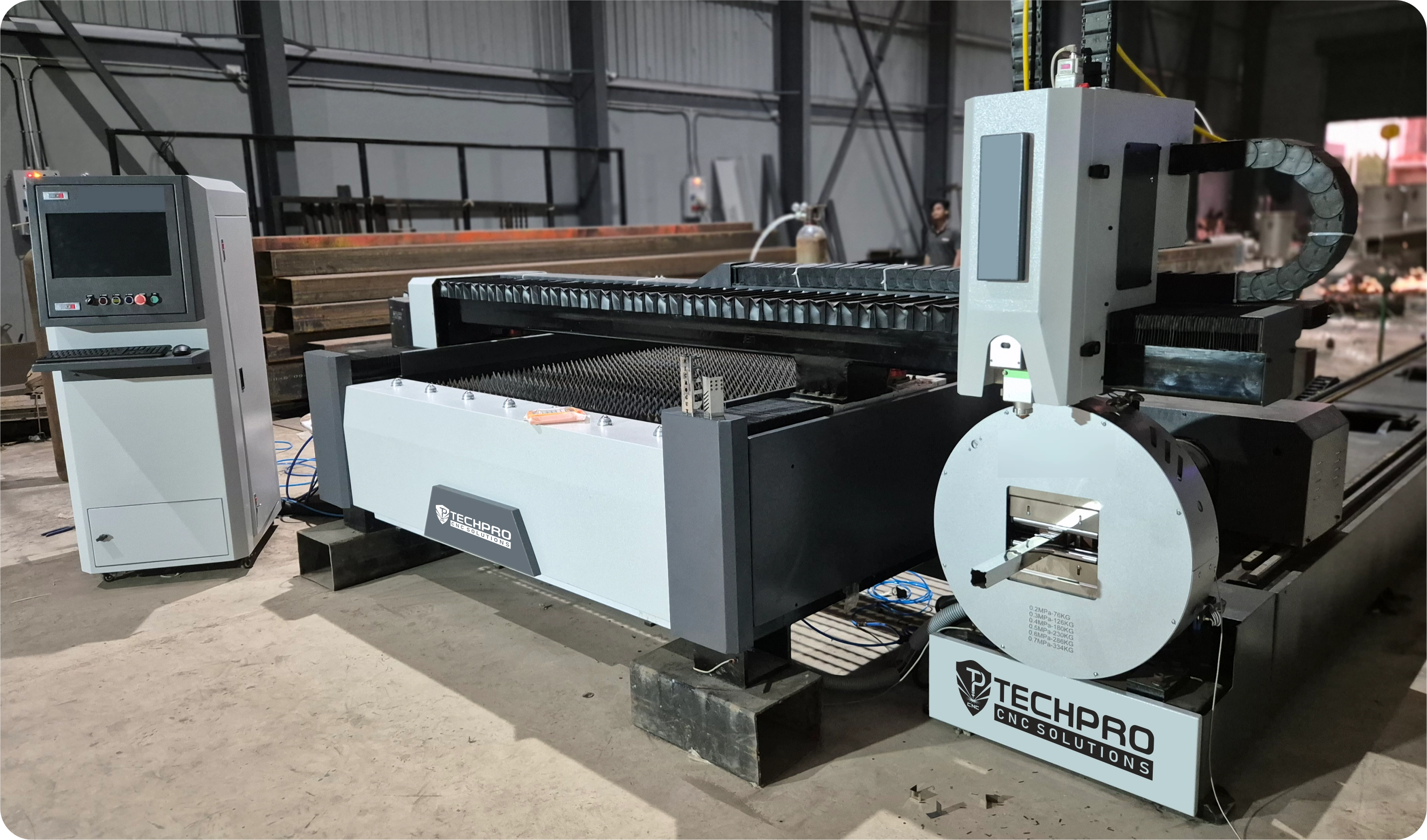

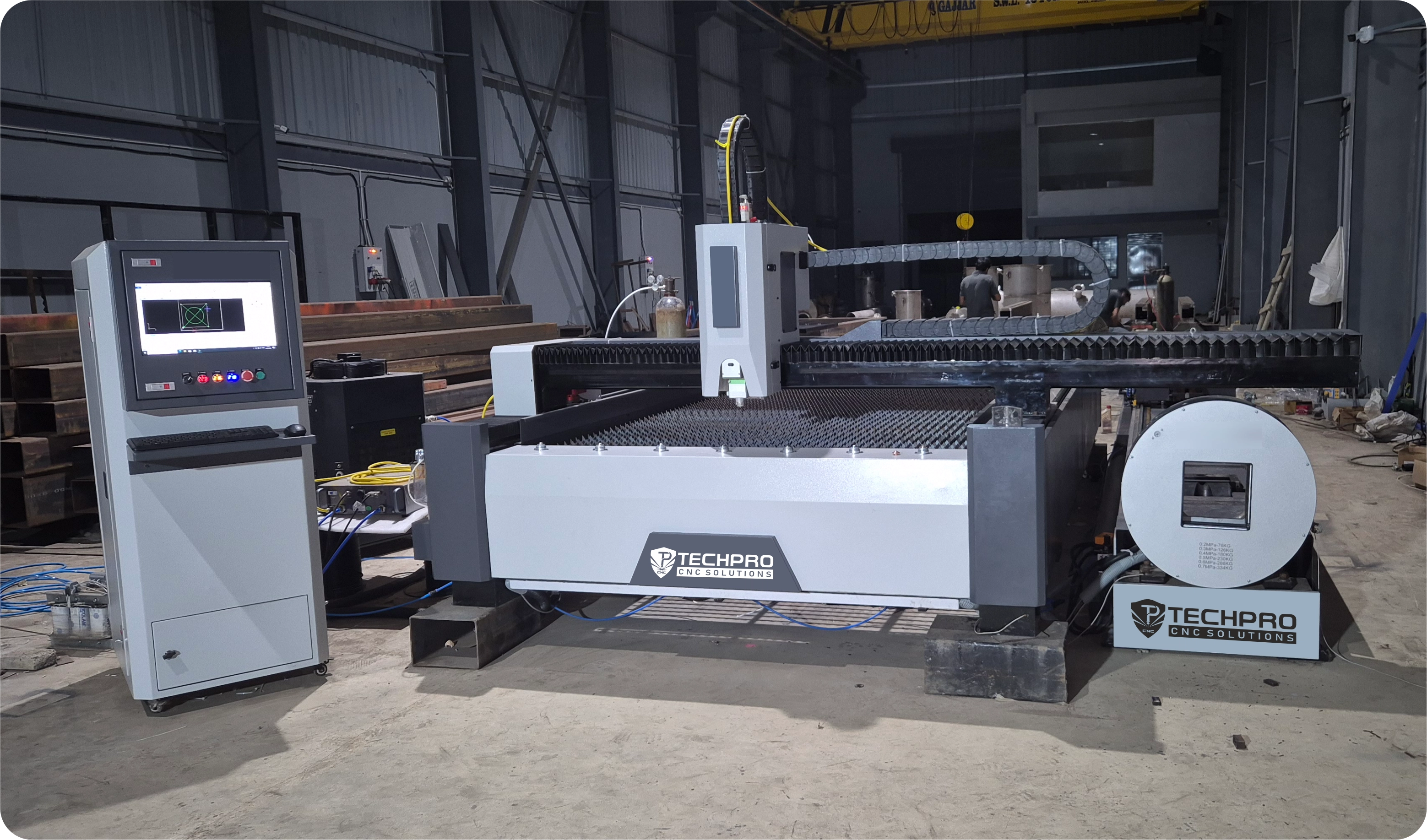

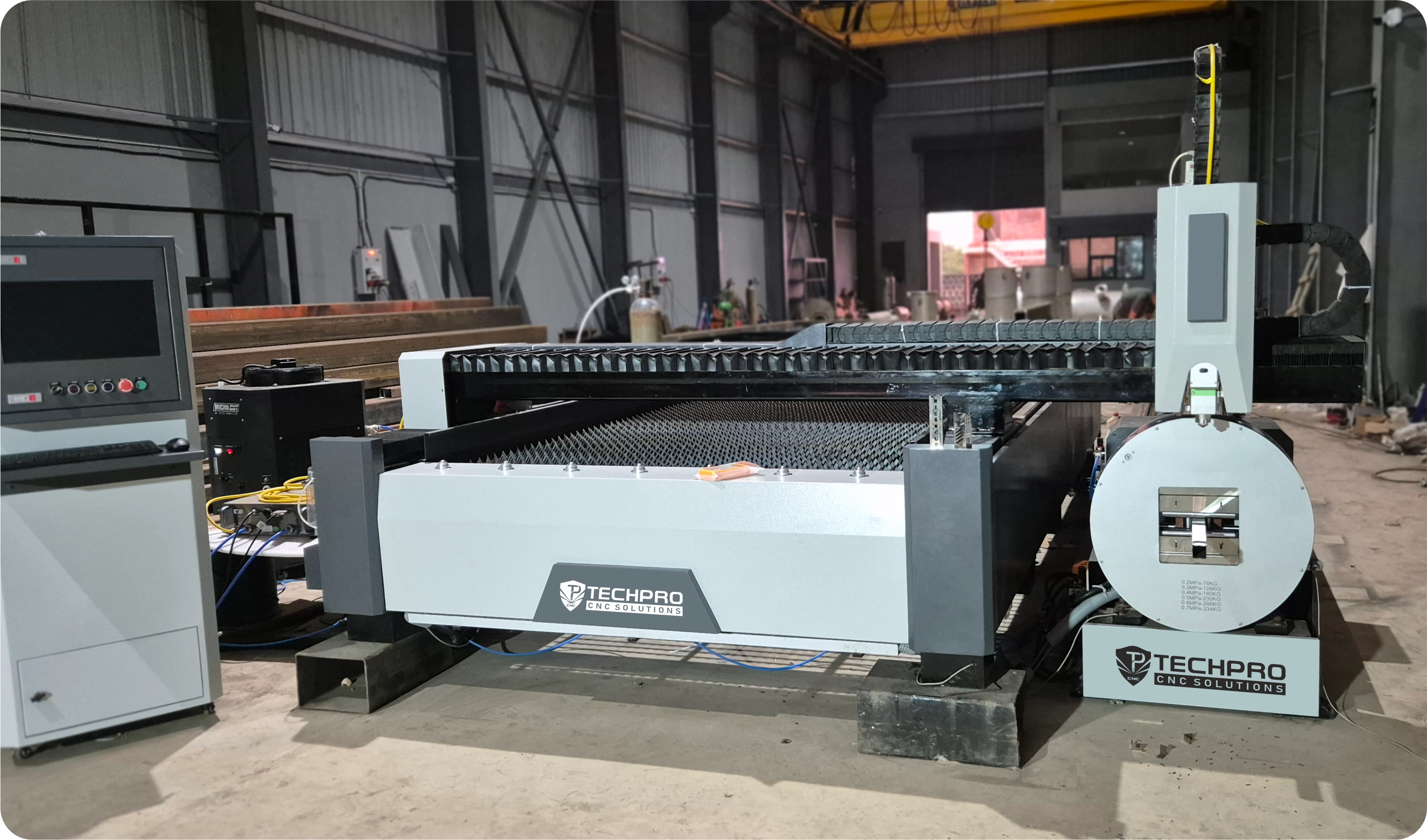

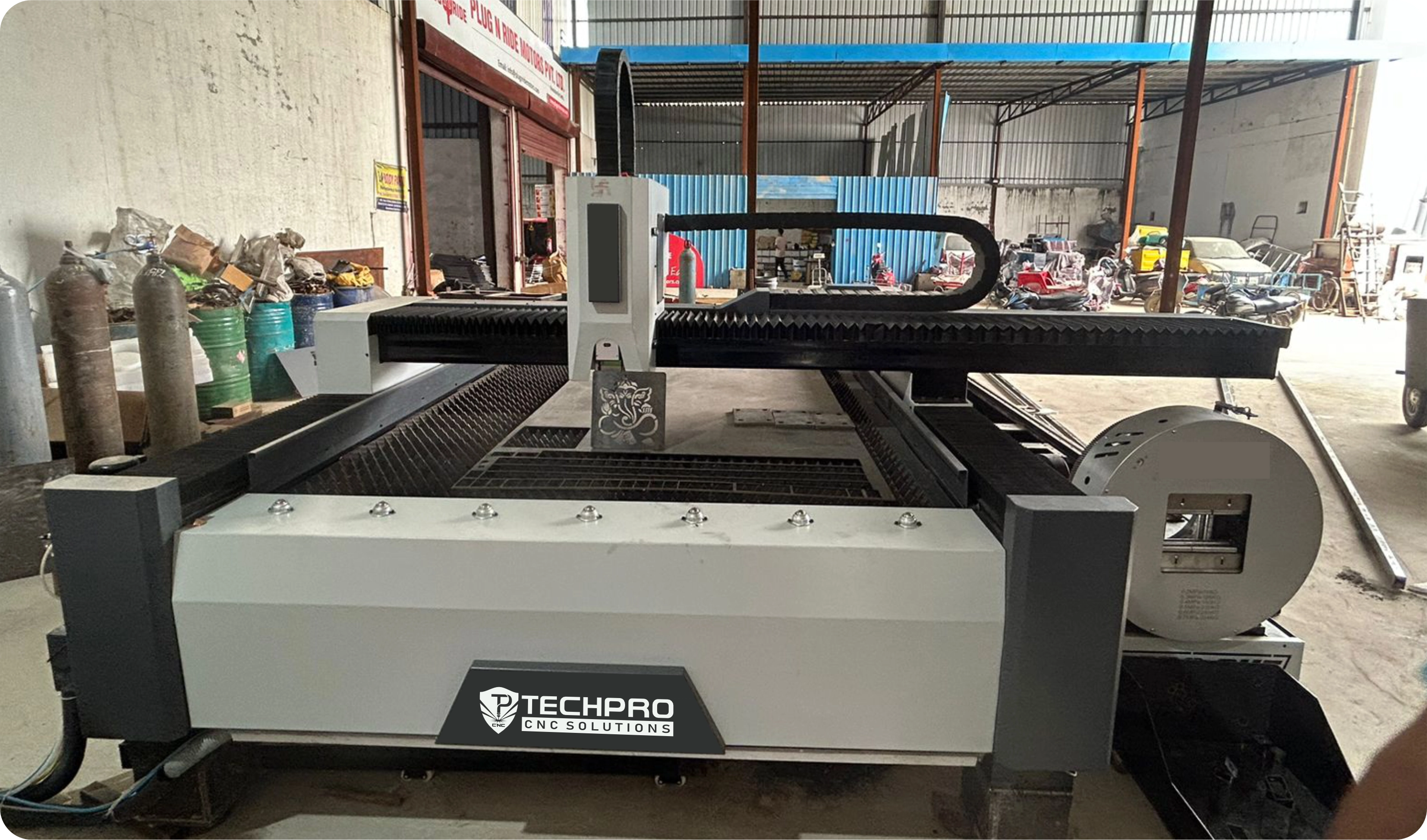

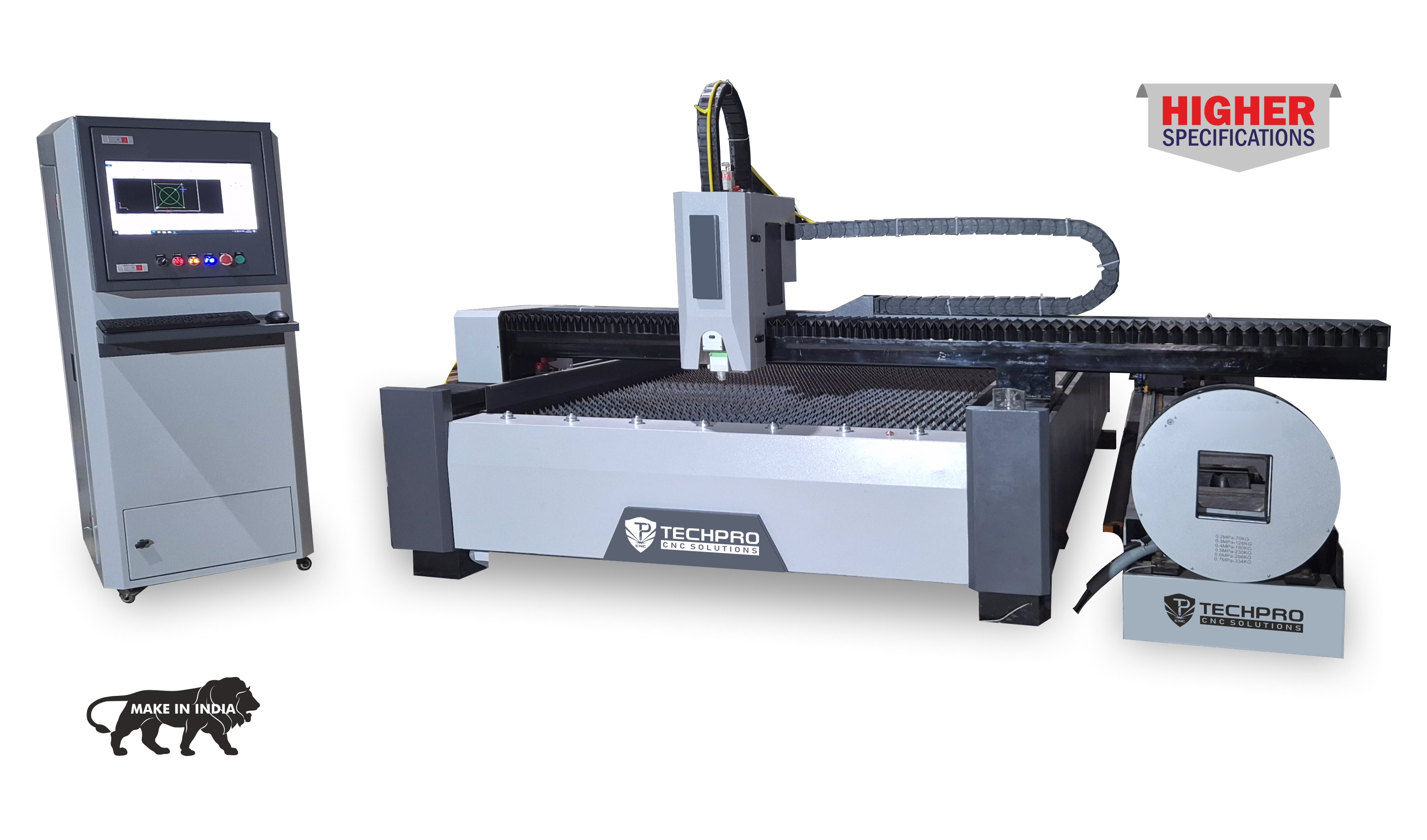

CNC Fiber Laser Plate with Pipe Cutting Machine
(Plate + Pipe Cutting Machine)
Product Discription
The CNC Fiber Laser Plate with Pipe Cutting Machine from TECHPRO CNC SOLUTIONS is a high-precision, dual-function cutting system designed to handle both sheet metal and pipe cutting applications. Engineered for superior accuracy, efficiency, and durability, this machine is ideal for industries requiring complex cutting solutions with high-speed performance. Our CNC Fiber Laser Plate with Pipe Cutting Machine ensures high productivity, reduced material wastage, and precise cutting quality, making it an excellent choice for modern metal fabrication industries.
Product Details
Specifications
- Power Sources : MAX / RAYCUS / IPG
- Cutting Accuracy: ± 0.03mm/Meter
- Maximum Pipe Diameter: 220mm
- Maximum Pipe Weight: 250 kg
- Maximum Acceleration: 1.2 G
- Max. Rapid Speed: 1,20,000 mm/Min
- Auto-Focus Cutting Head: Raytools / Bochu
Machine Sizes
- Working: 1600 x 3100 mm (TP-1530 LR)
- Working: 1600 x 6400 mm (TP-1565 LR)
- Working: 2100 x 4000 mm (TP-2040 LR)
- Working: 2100 x 6400 mm (TP-2065 LR)
- Working: 2500 x 6400 mm (TP-2565 LR)
- Pipe Cutting Length: 6000mm (6 Meters)
- As per requirements
Power Sources
- MAX / RAYCUS : 1500 W (1.5 KW)
- MAX / RAYCUS : 2000 W (2 KW)
- MAX / RAYCUS : 3000 W (3 KW)
- MAX / RAYCUS : 6000 W (6 KW)
- MAX / RAYCUS : 12000 W (12 KW)
- MAX / RAYCUS : 20000W (20 KW)
Key Features:
- ✅ High-Speed Precision Cutting: Advanced CNC controller, High Speed Chucks and servo motors for fast and accurate cutting.
- ✅ Powerful Fiber Laser Source: Available in multiple power configurations (1kW to 20kW) for various thicknesses.
- ✅ Automatic Chuck Clamping System: Provides firm grip on pipes for accurate and smooth cutting.
- ✅ Heavy-Duty Structure: Heavy-Weighted Table-type construction ensures stability and vibration-free operation.
- ✅ User-Friendly CNC Interface: Smart, intuitive software with nesting features for optimized material usage.
- ✅ Low Maintenance & Operating Cost: Fiber lasers consume less power and require minimal maintenance.
- ✅ Separate Control Cabinet Protects electronic components from dust and heat, ensuring longer lifespan and reliable operation.
- ✅ Optional Features: Pallet changer, Remote controller and any Other Requirements
Related Products

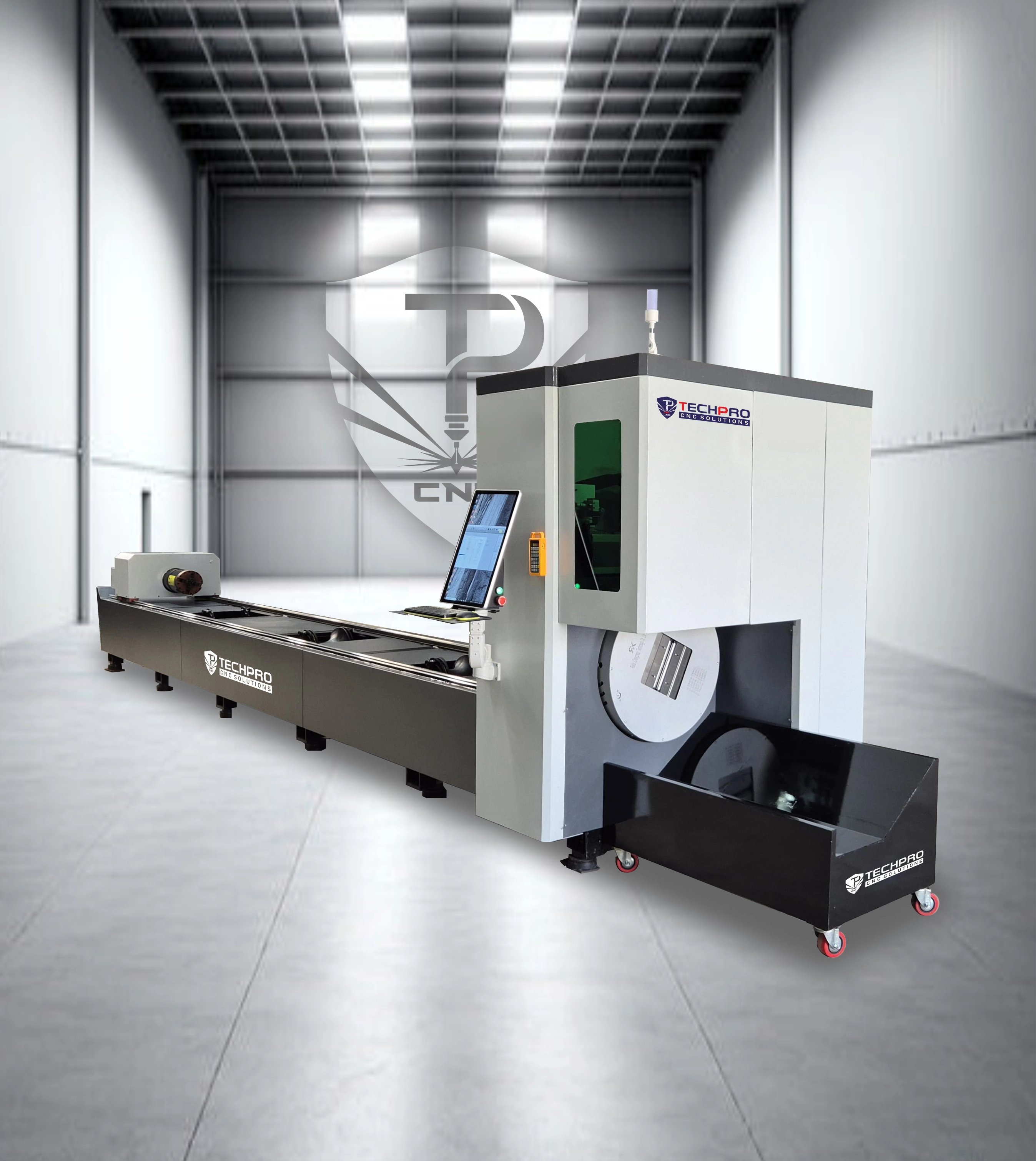

High-precision CNC Fiber Laser Pipe Cutting Machine for fast, accurate, and efficient metal tube processing.
Read MoreCNC Fiber Laser Tube Cutting Machine

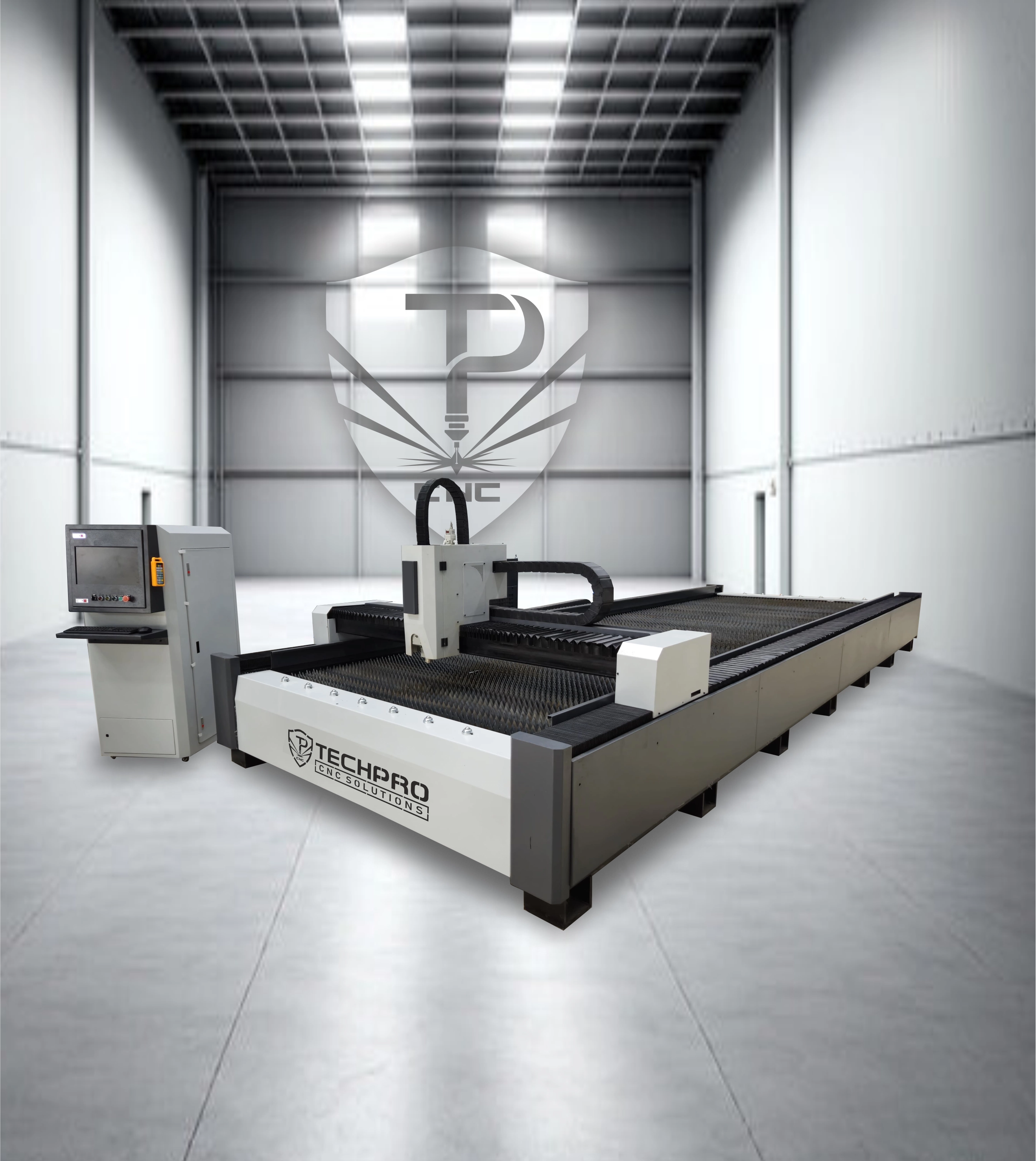

High-precision CNC Fiber Laser Cutting Machine with advanced features, fast cutting speed, and robust design.
Read MoreCNC Fiber Laser Cutting Machine (Table Type)
Gantry-type CNC machine combining fiber laser, plasma, and oxyfuel cutting for high-precision metal fabrication.
Read MoreCNC Fiber Laser with Plasma - Oxyfuel Cutting Machines (Gantry)

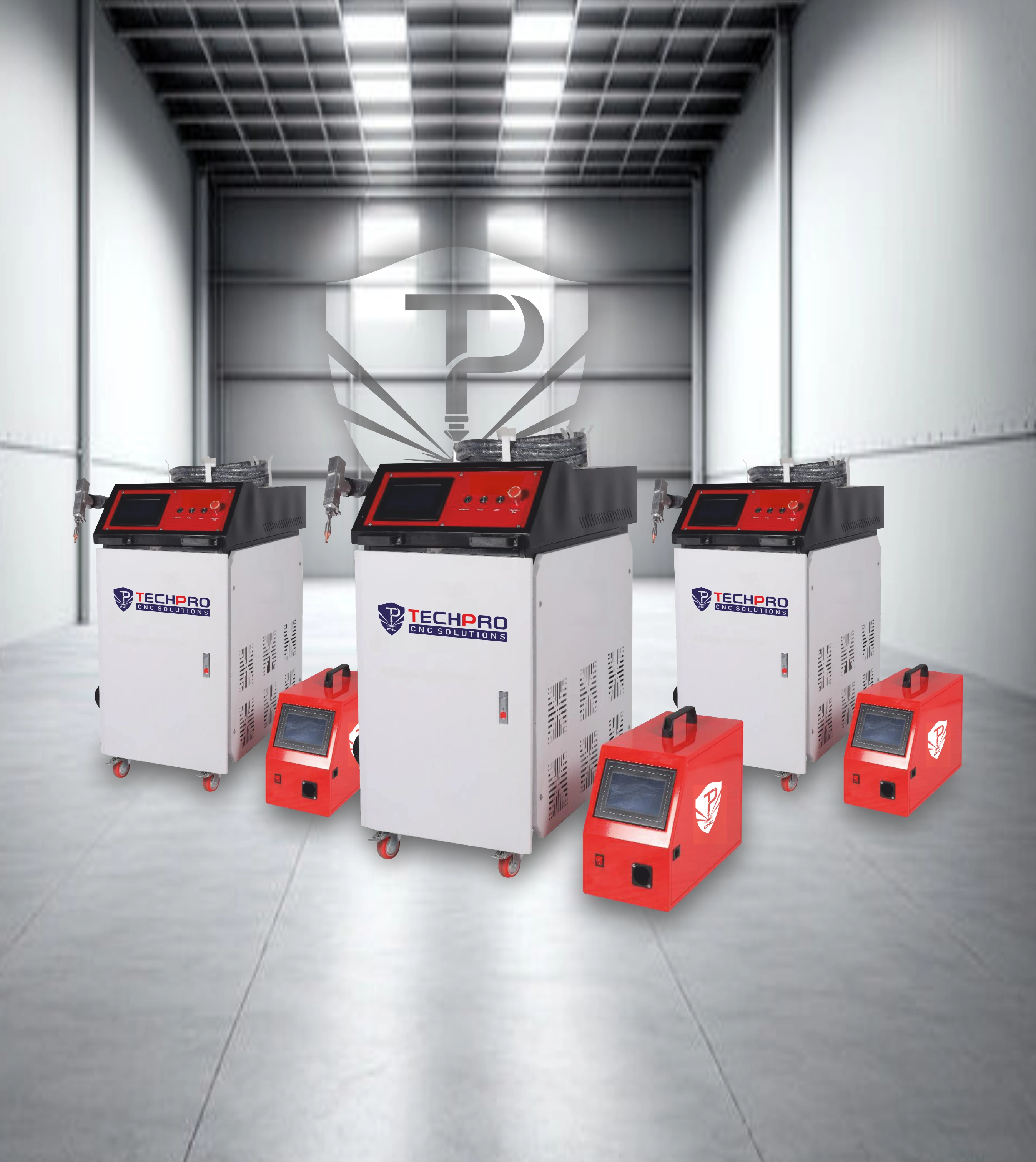

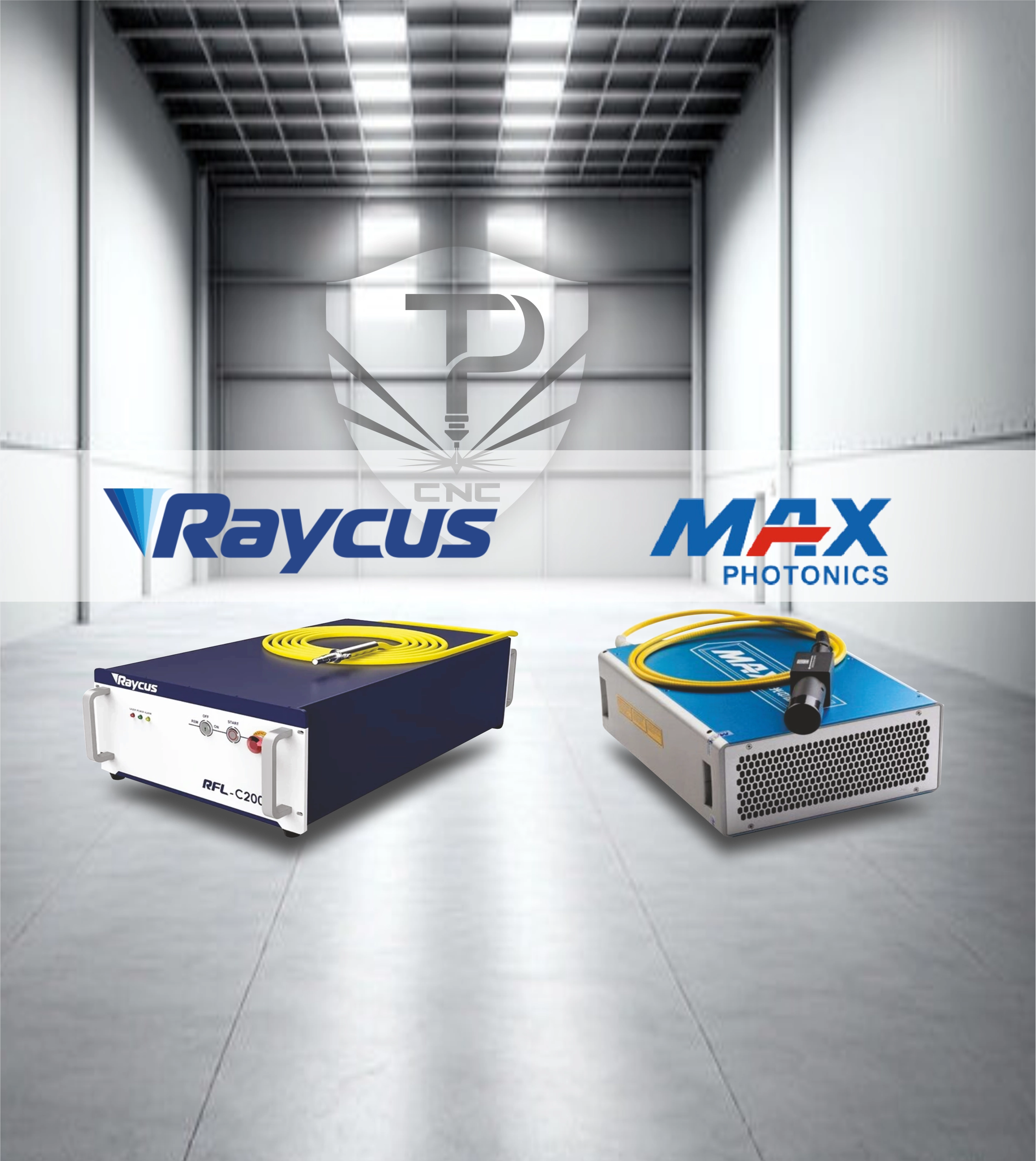

CNC fiber laser cutting and welding power sources ensure precision, high efficiency, and superior material processing quality.
Read MorePower Sources of CNC Fiber Laser Cutting & Welding

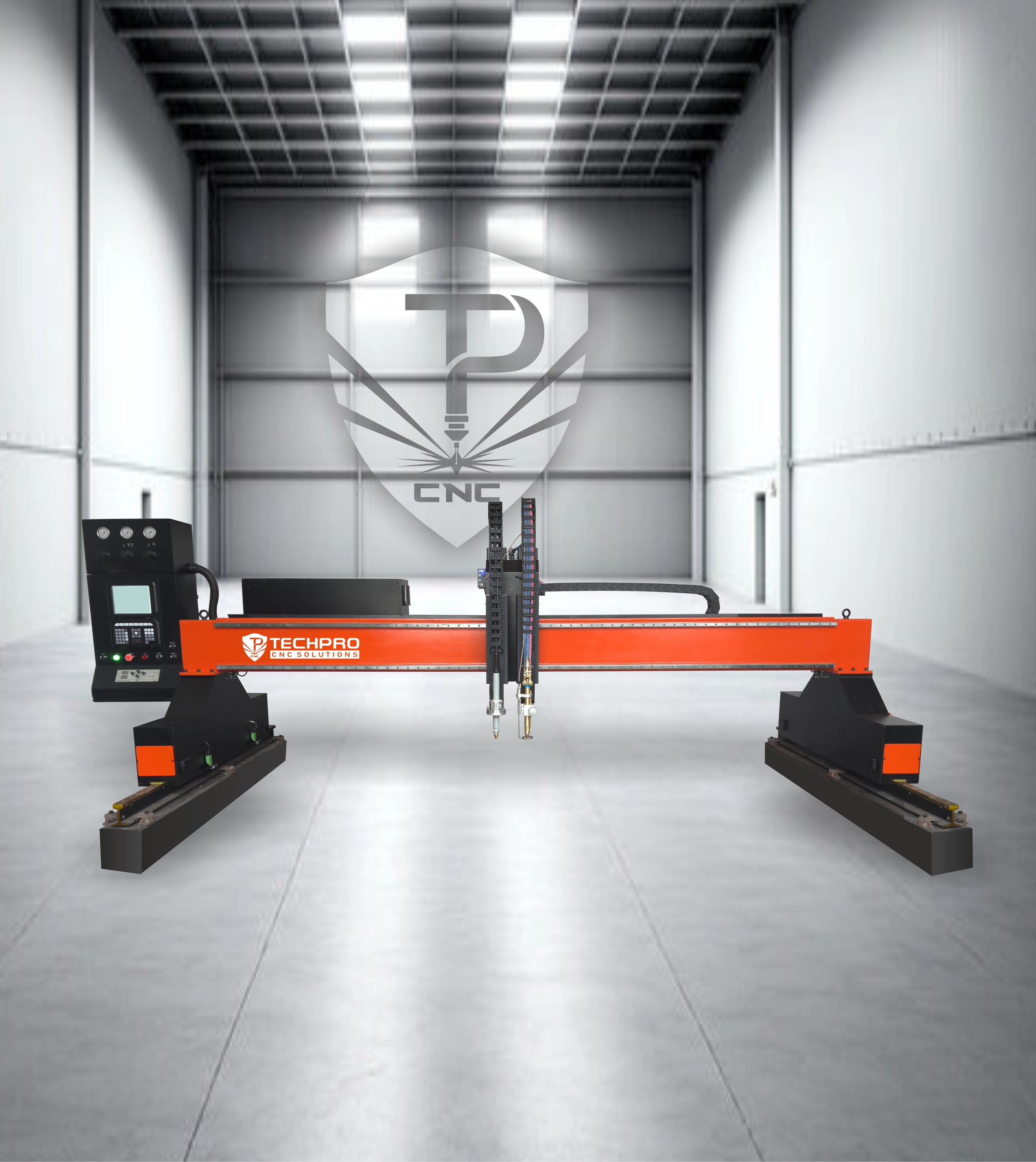

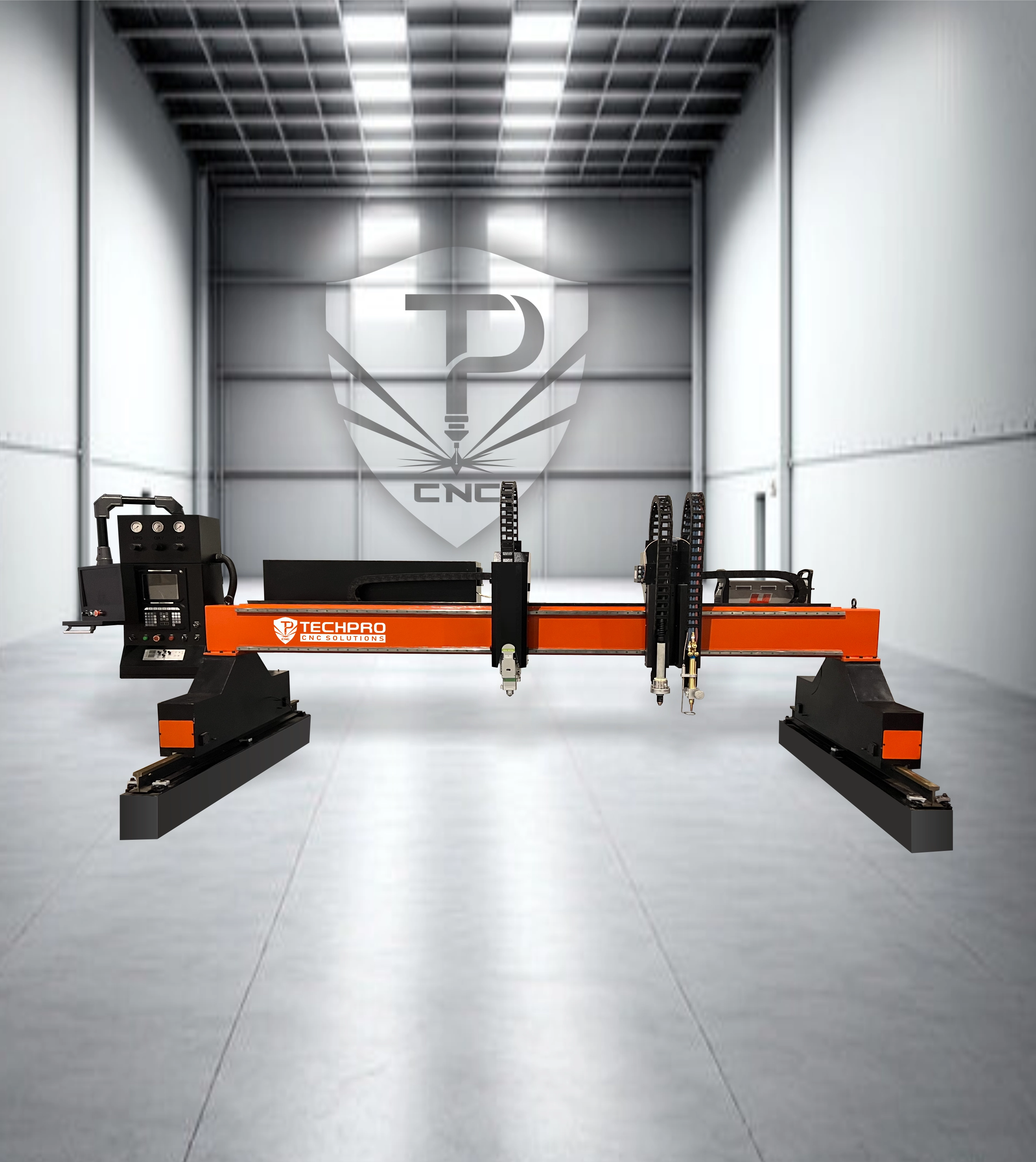

Our Gantry-type CNC Plasma with Oxyfuel Cutting Machine ensures precision cutting of metals with dual technology.
